SLURP tutorial

SLURP is designed to compute a simple land cover map (water, low/high vegetation, bare groud, buildings) from a VHR (Very High Resolution) image with 4 bands (Red, Green, Blue, Near-Infrared). SLURP is based on few or unsupervised algorithms (random forest, clustering, segmentation) that need some auxiliary data for training step.

It had been validated with Pleiades and tested with WordView, CO3D, Pleiades NEO images. It shall also work with images with lower resolution (ex : SPOT 6/7).

This document presents an example of the SLURP pipeline on an image extract from Strasbourg (France).

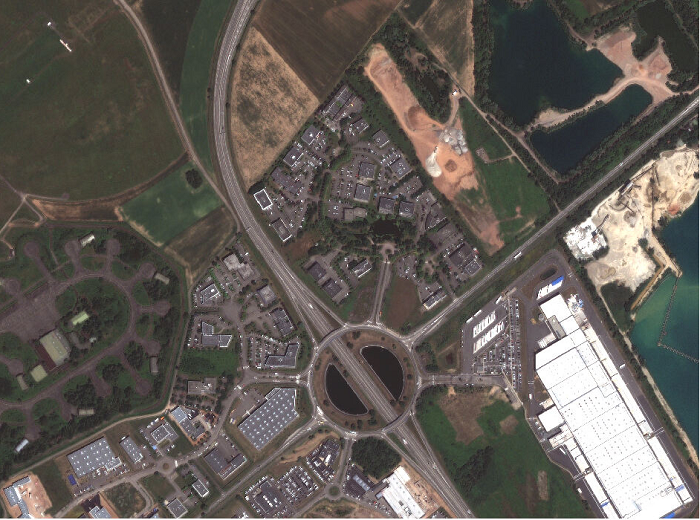

VHR image

Fig. 1 VHR image

First steps

Activate your environment containing SLURP

Warning

Depending on which computation you want to perform (cf. SLURP pipeline section), you may need to install OTB on your system as an additional dependencies. Please refer to the OTB installation guide provided here for more details.

$ source slurp_env/bin/activate

Get the necessary input data

In addition to the VHR input image, SLURP requires some auxiliary data to compute the different masks.

Auxiliary data Step / usage Comments
Pekel
(Global Surface Water - uint8)		 Water mask prediction : Water occurrence [0–100] during the last 30 years, used to learn a water prediction model (MANDATORY) The global map is mandatory but you can also use some data by month
Hand MERIT
(float32)		 Water mask prediction : Map of height above nearest drainage used to optimize choice of "non water" samples in the training step (OPTIONAL) Free after registration (other kind of HAND maps exist)
WSF 2019
(World Settlement Footprint - uint8)		 Urban mask prediction : Global buildings map used to learn a building prediction model (MANDATORY) Could be replaced by a better resolution map if available (e.g., OSM buildings)
ESA WorldCover
(uint8)		 Vegetation mask configuration : Global land cover map (10m resolution) used to customize vegetation clustering (OPTIONAL) Very helpful to parameterize balance between non-vegetation / low and high vegetation clusters (see vegetation mask algorithm)
Copernicus WBM
(float32 or int16)		 Stack mask : Water Body Mask from Copernicus, used to classify each water body from the watermask (OPTIONAL) If used, the final map will contain river, lake, sea classes


Fill in the configuration file

A template for the configuration file is available here. All parameters are explained in the SLURP configuration page.

SLURP pipeline

Additional shell scripts are provided here to launch the steps of the pipeline, but they can also be launched separately as explained below.

Usage without sensor mode (Additional OTB steps may be necessary)

If your input data has undergone geometric processing (e.g. orthorectification), you may need to use OTB to reproject and crop the auxiliary data (Pekel, Hand and WSF masks) to match your input image.

Note

Pekel and Hand data are used to compute the water mask, WSF data is used to compute the urban mask. Vegetation and shadow masks computation do not require any additional data.

Therefore, OTB is not required to compute vegetation and shadow masks.

To install OTB, please refer to the guide provided.

Once installed, you can use the OTB command line interface (CLI) to superimpose Pekel, Hand and WSF data with your input image.

# Superimpose Pekel, Hand and WSF with OTB
# /!\ Adapt path depending on where your global Pekel database (resp. HAND, WSF) is located
otbcli_Superimpose -inr path_to_input/input_file.tif -inm path_to_pekel/pekel_file.vrt -out "out/pekel.tif?&gdal:co:TILED=YES&gdal:co:COMPRESS=DEFLATE" uint8 -interpolator nn
otbcli_Superimpose -inr path_to_input/input_file.tif -inm path_to_hand/hand_file.vrt -out "out/hand.tif?&gdal:co:TILED=YES&gdal:co:COMPRESS=DEFLATE"
otbcli_Superimpose -inr path_to_input/input_file.tif -inm path_to_wsf/wsf_file.vrt -out "out/wsf.tif?&gdal:co:TILED=YES&gdal:co:COMPRESS=DEFLATE" uint8 -interpolator nn

Usage in sensor mode (OTB is not required)

If your input data image is in sensor geometry, please use SLURP with the sensor_mode option set to True. This mode allows to use images in sensor geometry, Pekel, Hand and WSF masks are directly processed during SLURP’s preparation step.

SLURP’s preparation step

We need to prepare all the auxiliary data required to calculate the masks. This includes reprojection (when using sensor_mode option) and cropping.

Run the following command :

slurp_prepare main_config.json

Or use the Python API :

import slurp-masks as slurp

slurp_prepare(main_config = main_config.json)

The outputs of the prepare script have been stored to the prepare directory.

It contains :

  • the validity mask

  • the NDVI and NDWI primitives

  • the texture analysis

  • the superimposed Pekel, HAND and WSF files (only if using sensor_mode option)

  • the global config JSON file

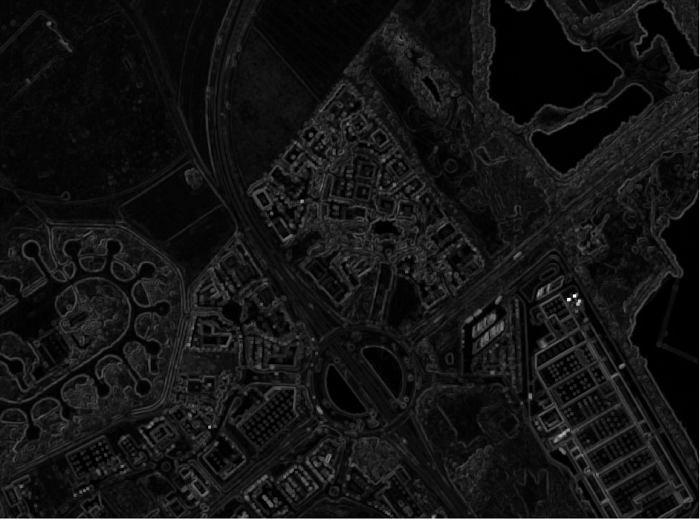

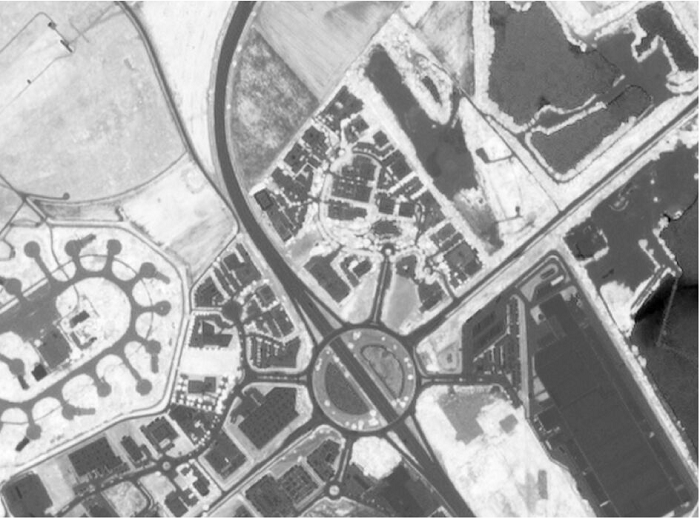

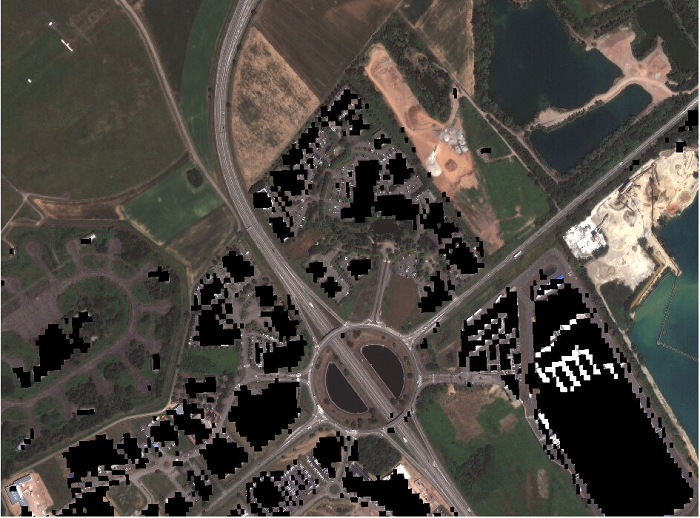

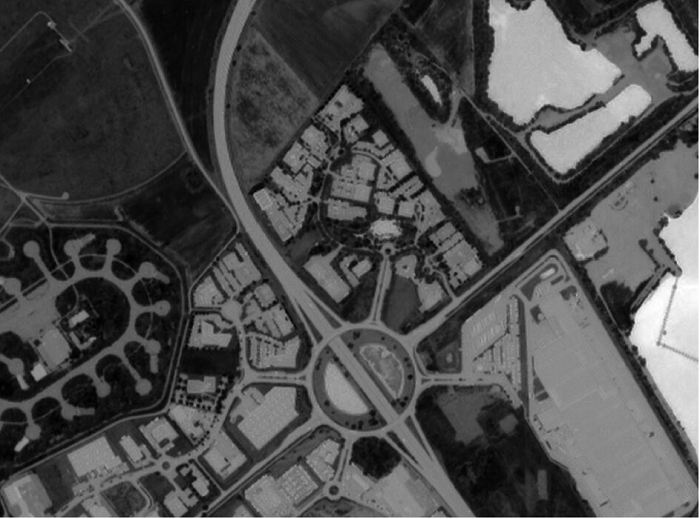

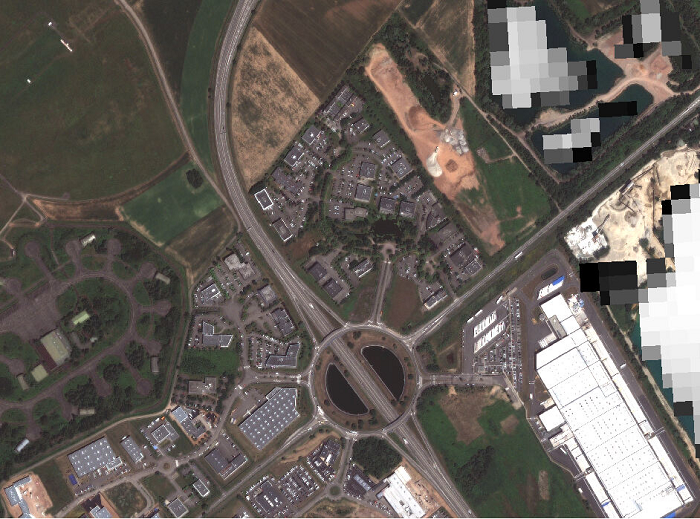

NDVI image NDWI image Texture computation Pekel mask WSF mask
NDVI of the VHR image NDWI of the VHR image Squared convolution with a kernel of ones Reprojected and cropped Pekel mask Reprojected and cropped WSF mask

SLURP’s masks computation

Now, the different masks can be computed and finally stacked together. Use either the CLI or the Python API to launch each step.

Generate the water mask

slurp_watermask prepare/effective_used_config.json

import slurp-masks as slurp

slurp_watermask(main_config = prepare/effective_used_config.json)

Generate the vegetation mask

slurp_vegetationmask prepare/effective_used_config.json

import slurp-masks as slurp

slurp_vegetationmask(main_config = prepare/effective_used_config.json)

Generate the shadow mask

slurp_shadowmask prepare/effective_used_config.json

import slurp-masks as slurp

slurp_shadowmask(main_config = prepare/effective_used_config.json)

Generate the urban mask

slurp_urbanmask prepare/effective_used_config.json

import slurp-masks as slurp

slurp_urbanmask(main_config = prepare/effective_used_config.json)

Stack the masks

slurp_stackmasks prepare/effective_used_config.json

import slurp-masks as slurp

slurp_stackmasks(main_config = prepare/effective_used_config.json)

The outputs masks have been stored to the out directory.

It contains :

  • the water mask

  • the shadow mask

  • the urban mask

  • the vegetation mask

  • the stack mask

Results

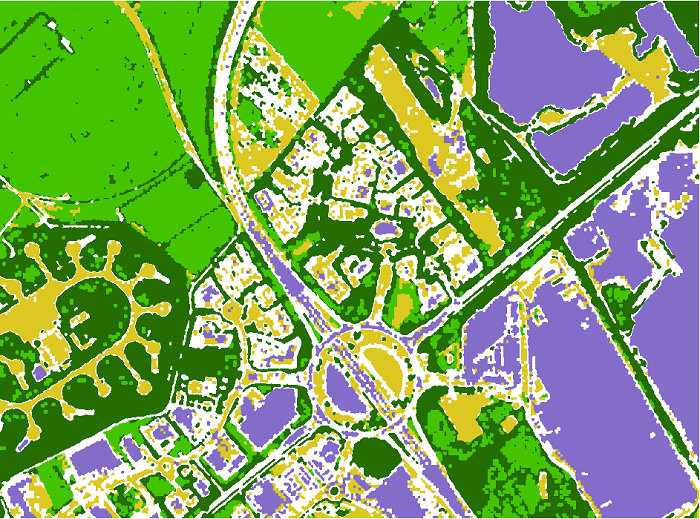

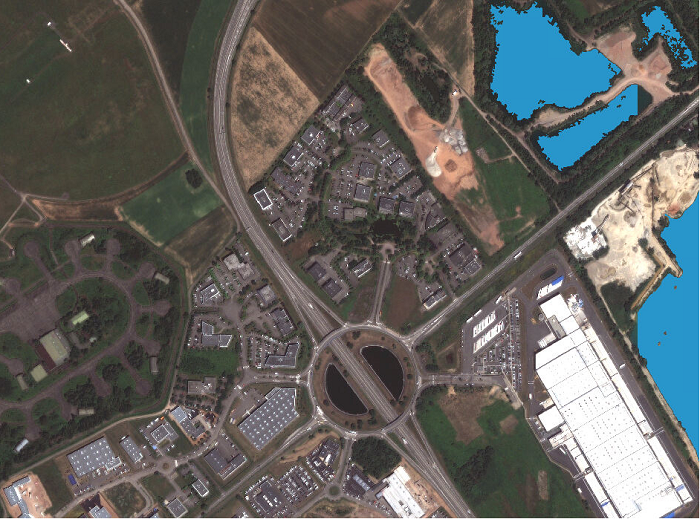

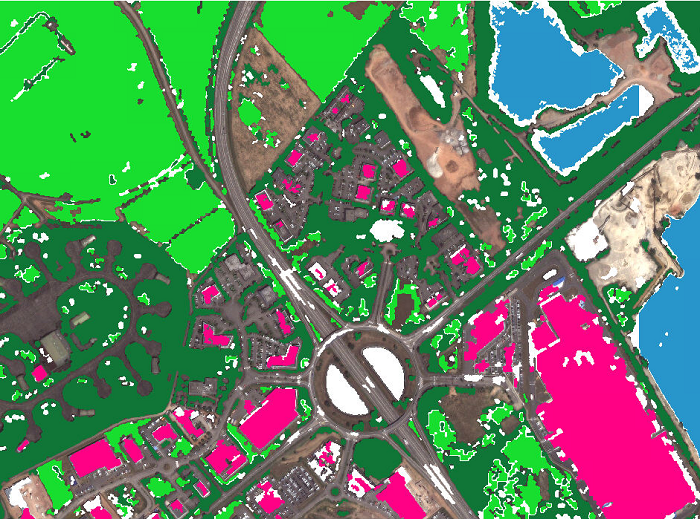

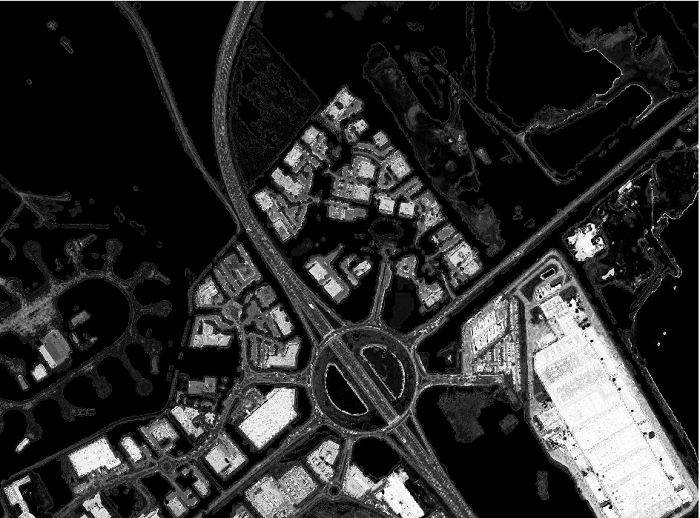

Water mask Low/High vegetation and bare ground mask Shadow mask Urban probability Final mask
Water mask with style conf/style_water.qml Vegetation mask with style conf/style_vegetation.qml Shadow mask with style conf/style_shadow.qml Urban mask (building probability) Stack mask with style conf/style_stack.qml
